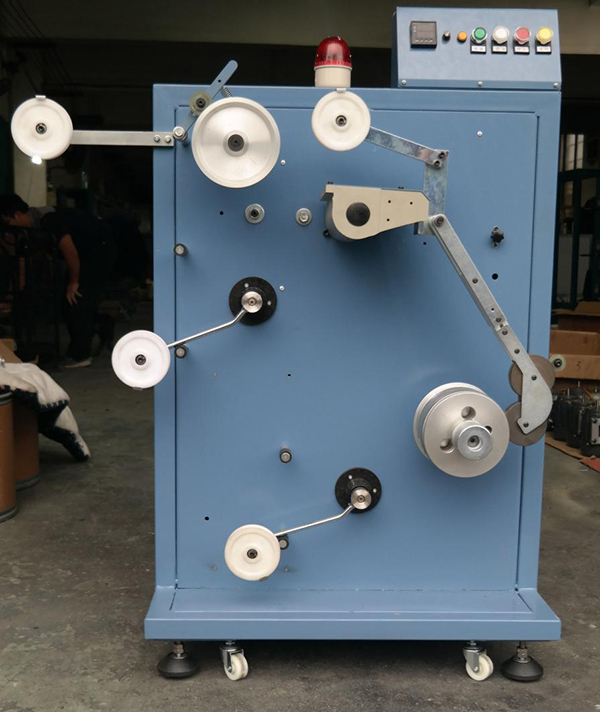

变频打孔纸带卷绕机

张力计厂家 2018-01-24


  特点及应用| Characteristics and Application
  卷绕机主要用作于各种材质扁带的平行卷绕,也可在轻工、纺织、电子等生产领域使用。本机器具有卷筒成形好,张力恒定,能耗低等特点。
  技术参数:
  卷绕机绕丝线速度:0-100m/min(可定制)
  卷筒最大直径:76-700mm(可定制)
  电源:AC220V  50HZ/60HZ
  电机功率:15W/250V    200W/220V
  电机转速:1400 r/min/ 2800r/min(可调)
  连接电缆3×2.5   R.S.J.MP
  卷绕筒管尺寸:内径×外径×长度(mm)152×165×105(无论内径和长度均可以在有限范围内为您定做)
  往复行程:92mm(标准)
  The winding machine is mainly used for the parallel winding of various materials, and can also be used in light industry, textile, electronics and other production areas.The machine has the characteristics of good shape, constant tension and low energy consumption.
  Technical parameters:
  Winding speed:0-100m/min
  The maximum diameter of the drum:76-700mm
  Power:AC220V  50HZ/60HZ
  Motor power:15W/250V     200W/220V
  Motor speed: 1400r/min     2800r/min
  Connect the cable:3X2.5  R.S.J.MP
  Winding bobbin size:Inside diameter x Outside diameter x length(mm)152X165X105(The inner diameter and length have different requirements can be customized in the range)
  Reciprocating stroke:92mm

立刻拨打:13911001672
